Daily load schedule (AC side)
- LED lighting: 40 W for 5 h
- Fridge: 60 W, 35% duty, 24 h
- Laptop: 65 W for 4 h
- Water pump: 50 W for 1 h
- Router: 12 W continuous
- Daily energy at the appliances
Electrical · worked example · 3 pages

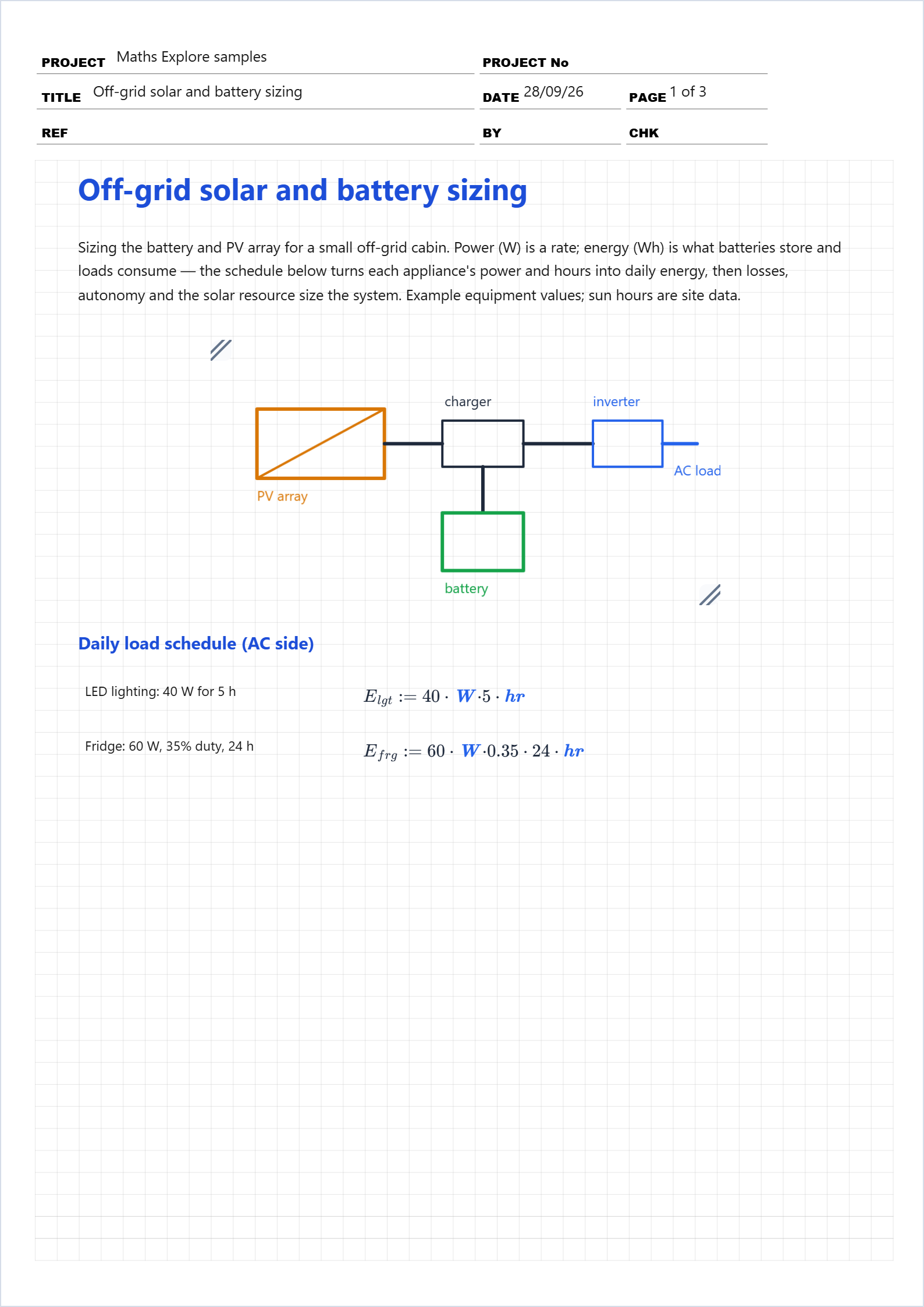

Off-grid solar and battery sizing
Sizing the battery and PV array for a small off-grid cabin. Power (W) is a rate; energy (Wh) is what batteries store and loads consume — the schedule below turns each appliance's power and hours into daily energy, then losses, autonomy and the solar resource size the system. Example equipment values; sun hours are site data.
Open this example in Maths Explore
No account needed. Change any input and every result below it updates.
What this calculation covers
Losses and battery draw
- Inverter efficiency
- Daily energy drawn from the battery
Battery: nominal vs usable
- Days of autonomy required
- Usable depth of discharge (LiFePO4)
- Nominal capacity required
- Chosen bank: two 25.6 V 100 Ah units
- Usable energy in the bank
- Bank meets the autonomy target
- Actual days of autonomy
Solar array
- Peak sun hours, design month
- System derate (wiring, dust, MPPT)
- Array power to replace a day's draw
- Chosen array: two 230 W panels
- Energy a design-month day generates
- A normal day recharges a normal day
A stretch of poor weather
- Generation on a 2-sun-hour day
- Days the bank bridges that weather
Results summary
- The cabin uses about 1.30 kWh a day at the plugs — 1.45 kWh from the battery through the inverter. Two 25.6 V 100 Ah LiFePO4 units hold 5.12 kWh nominal, 4.10 kWh usable: 2.8 days of real autonomy. A 460 W array regenerates a day's use in 4.5 sun hours with margin; in 2-sun-hour weather the net drain is ~0.76 kWh/day and the bank alone bridges about 5 days.
Try changing…
- Add a 900 Wh/day freezer — the array must grow past 700 W and autonomy nearly halves.
- Allow only 50% DoD (lead-acid habit) — the same bank offers 1.8 days; capacity must rise.
- Plan for PSH = 3.0 — the required array grows a half; panels are the cheap fix, batteries are not.
