Machine vibration and isolation

A fan on resilient mounts, modelled as a single degree of freedom: one mass on the summed mount stiffness with light damping. The question is how much of the rotating unbalance force reaches the floor — the force transmissibility — and it hangs on the ratio of forcing to natural frequency. Note the three speed quantities: rotational speed N (rev/min), frequency f (Hz = cycles/s), and angular frequency ω = 2πf (rad/s).

Open this example in Maths Explore

No account needed. Change any input and every result below it updates.

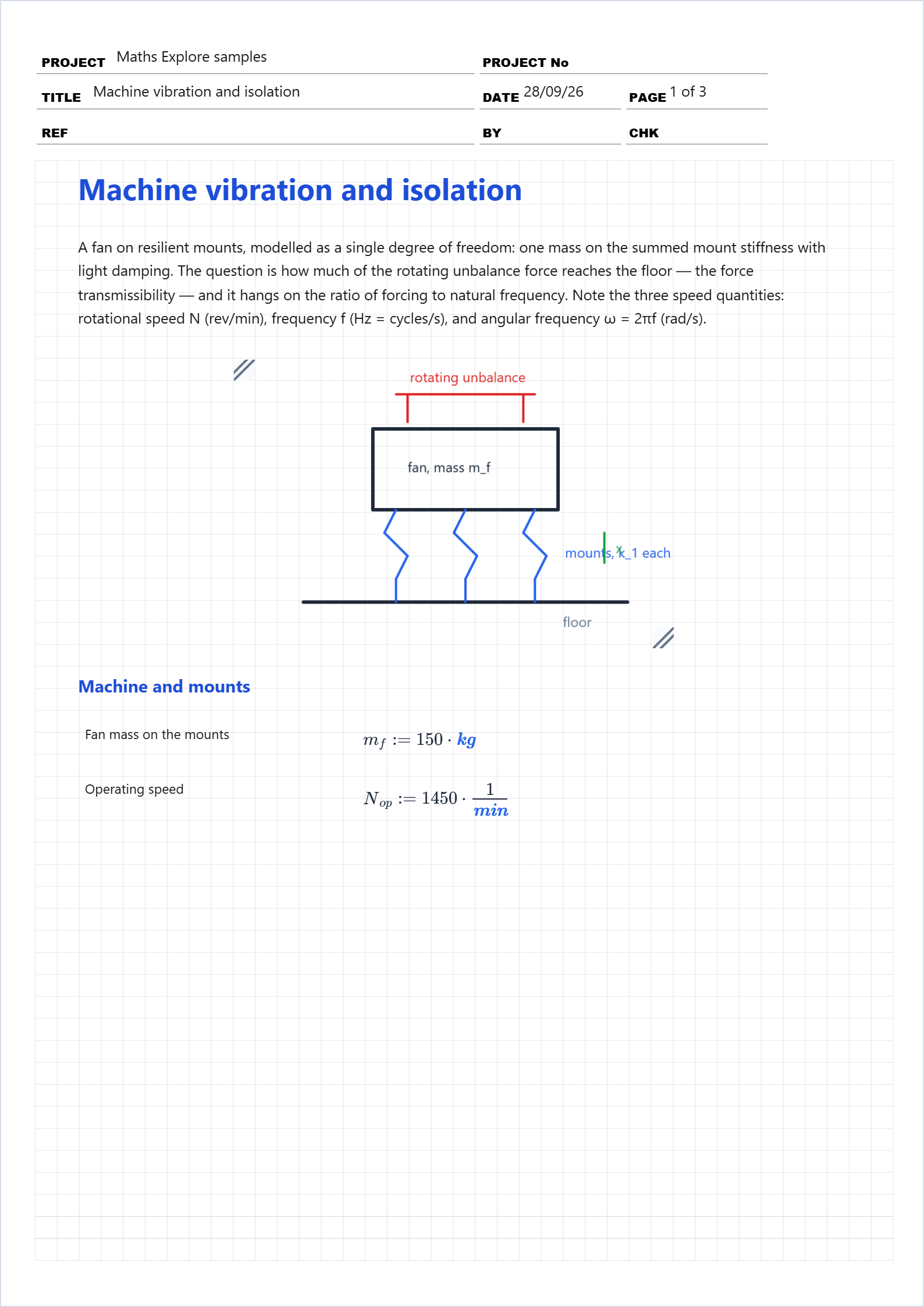

First page of the Machine vibration and isolation worked example in Maths Explore
The first page of the calcsheet as it appears in Maths Explore.

What this calculation covers

Machine and mounts

  • Fan mass on the mounts
  • Operating speed
  • Number of mounts
  • Stiffness of each soft mount
  • Damping ratio of the mounts

Speed, three ways

  • Forcing frequency (same quantity in Hz)
  • Angular forcing frequency

The one-degree-of-freedom model

  • Total stiffness under the fan
  • Natural angular frequency
  • Natural frequency
  • Standard gravity (from the constants sheet)
  • Static deflection under the fan's weight
  • Frequency ratio r
  • Isolation only exists above r = √2

Force transmissibility

  • Transmissibility for ratio r, damping ζ
  • Chosen soft mounts
  • Isolation achieved

Mounting options compared

  • Frequency ratio for a mount stiffness k
  • Ten-times-stiffer mounts
  • Running AT resonance (r = 1)

Results summary

  • The 1450 rev/min fan forces at 24.2 Hz. On soft mounts (180 kN/m total) the system sits at 5.5 Hz — r = 4.4 — and only 6% of the unbalance force reaches the floor: 94% isolation with an 8 mm static sag. Mounts ten times stiffer put r at 1.39, below √2's benefit line, and actually AMPLIFY the force by 8%; passing through r = 1 at this damping would multiply it tenfold. Soft is the point.

Try changing…

  • Run the fan at 960 rev/min — r drops to 2.9 and the transmitted share more than doubles.
  • Raise ζ to 0.2 — the resonance peak collapses to 2.6×, at the price of a little isolation up high.
  • Bolt the fan straight down (huge k) — r → 0 and every newton of unbalance goes into the slab.
