Loading and design action
- Simply supported span
- Permanent (dead) line load
- Imposed (live) line load
- Factored load, 1.2G + 1.5Q (AS/NZS 1170.0)
- Design bending moment at midspan
Structural · worked example · 4 pages

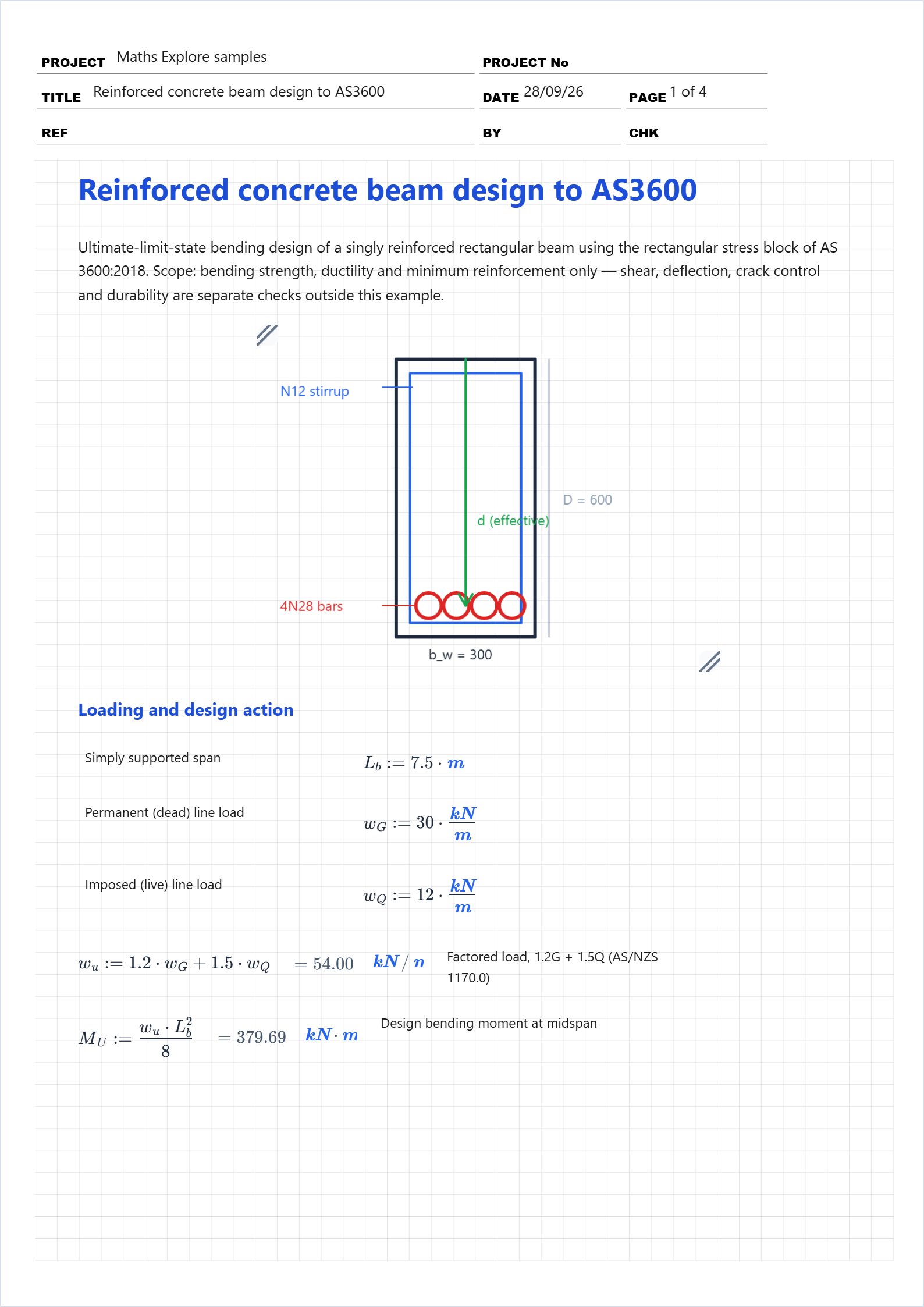

Reinforced concrete beam design to AS3600
Ultimate-limit-state bending design of a singly reinforced rectangular beam using the rectangular stress block of AS 3600:2018. Scope: bending strength, ductility and minimum reinforcement only — shear, deflection, crack control and durability are separate checks outside this example.
Open this example in Maths Explore
No account needed. Change any input and every result below it updates.
What this calculation covers
Materials
- Concrete strength (28 day)
- Reinforcement yield strength
- Flexural tensile strength (cl 3.1.1.3)
Section and reinforcement
- Overall depth
- Beam width
- Concrete cover
- Stirrup diameter
- Longitudinal bar diameter (4N28)
- Number of bars
- Capacity reduction factor, bending
- Effective depth to the bar centroid
- Reinforcement area provided
Reinforcement required
- Approximate area required (0.9d lever arm)
- Enough reinforcement for the moment
- Minimum reinforcement (cl 8.1.6.1)
- Minimum reinforcement satisfied
Bending capacity
Rectangular stress block (cl 8.1.3): the reinforcement is assumed to yield, then ductility is confirmed with the neutral-axis check.
- Stress block intensity (cl 8.1.3)
- Stress block depth factor (cl 8.1.3)
- Yield force in the reinforcement
- Depth to the neutral axis
- Neutral axis parameter
- Ductility (cl 8.1.5)
- Ultimate moment capacity
- Design moment capacity
- Bending strength adequate
- Bending utilisation
Results summary
- The factored midspan moment of the 7.5 m beam is about 380 kN·m. With 4N28 bars at 534 mm effective depth the design capacity is about 482 kN·m — 79% utilised. Minimum reinforcement passes easily; the neutral-axis check gives k_u = 0.31 against the 0.36 ductility limit, a real but modest margin worth watching if bars are added.
Try changing…
- Drop to 3 bars — capacity falls to about 376 kN·m, below the demand: two checks turn red.
- Raise f'c to 50 MPa — capacity grows only ~5% (steel governs) while k_u eases to 0.23.
- Stretch the span to 9 m — the demand grows with L² to about 547 kN·m and overtakes capacity.
