Floor and span
- Beam span (simply supported)
- Tributary width carried by the beam
- Permanent area load (incl. services)
- Imposed area load (office)
Structural · worked example · 4 pages

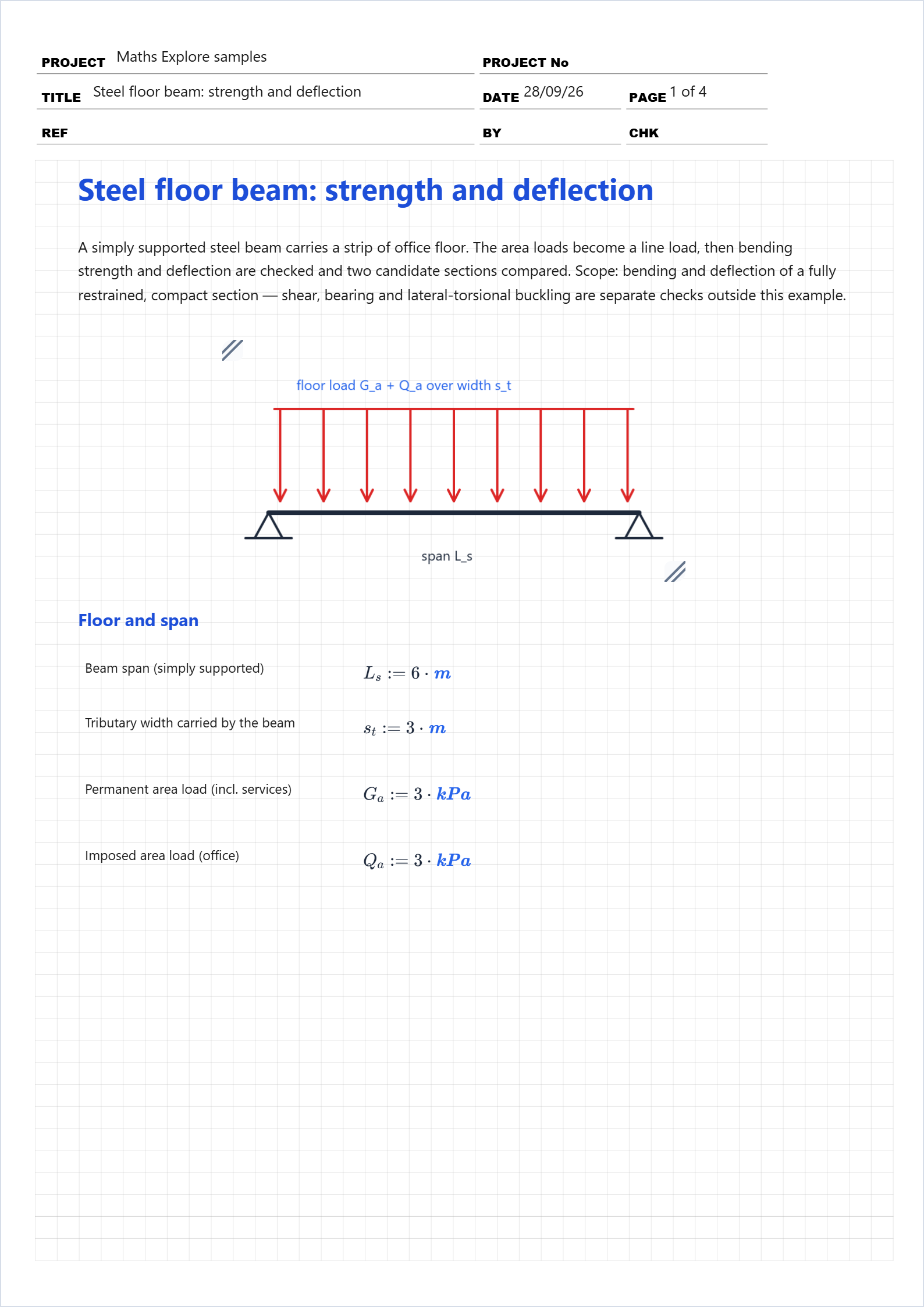

Steel floor beam: strength and deflection
A simply supported steel beam carries a strip of office floor. The area loads become a line load, then bending strength and deflection are checked and two candidate sections compared. Scope: bending and deflection of a fully restrained, compact section — shear, bearing and lateral-torsional buckling are separate checks outside this example.
Open this example in Maths Explore
No account needed. Change any input and every result below it updates.
What this calculation covers
Line loads on the beam
- Permanent line load
- Imposed line load
- Factored load, 1.2G + 1.5Q (AS/NZS 1170.0)
- Serviceability load, short term (ψs = 0.7)
Design actions
The Beams panel's simply-supported case: M = wL²/8 at midspan, V = wL/2 at the supports, δ = 5wL⁴/384EI.
- Design bending moment
- Design shear at the support
Trial section
Example properties for a 310UB-class universal beam — copy exact values for your section from the Sections panel or a catalogue, so the sheet stands alone.
- Second moment of area
- Effective section modulus (compact)
- Yield stress (example)
- Elastic modulus of steel
- Capacity reduction factor
Strength check
- Design bending capacity φM
- Bending strength adequate
- Bending utilisation
Deflection check
Deflection utilisation (0.90) exceeds bending utilisation (0.64): serviceability governs this beam, as it often does at ordinary office spans.
- Midspan deflection under w_s
- Deflection limit L/360
- Deflection within limit
- Deflection utilisation
A lighter section for comparison
The same checks as functions of the section properties, then a 250UB-class trial (example values I = 44.5×10⁶ mm⁴, Z = 354×10³ mm³):
- Deflection for a section with second moment I
- Bending utilisation for modulus Z
- 250UB-class deflection
- Lighter section passes deflection?
- 250UB-class bending utilisation
Results summary
- The 310UB-class section carries the 6 m bay at 64% bending and 90% deflection utilisation — deflection governs. The 250UB-class alternative deflects 29 mm against a 16.7 mm limit and is over strength capacity too, so the heavier beam stands.
Try changing…
- Stretch the span to 7 m — deflection grows with L⁴ and fails long before strength does.
- Halve the tributary width — both utilisations halve; a lighter section then passes.
- Tighten the limit to L/500 (brittle finishes) — the chosen section now fails serviceability.
